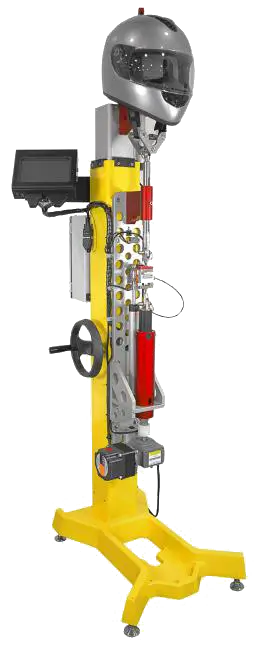

Static Tensile Load for Retention System

P/N: 1000_03_RMSDT

Download PDF

Request a Quote

Designed and manufactured to test the efficiency of the helmets retention system compliance with DOT FMVSS No.218, ACH (Advanced Combat Helmet) and AS/NZS 2512.5.1 standards. Operated by either Cadex software or touchscreen controller.


  • Motorized system
  • Double linear transducers to measure elongation minus helmet’s compression
  • Incorporated load cell to apply constant static load
  • Adjustable headform support can be raised or lowered up to 10 inches (25.4 cm)
  • Powered by 115VAC/60Hz or 220VAC/50Hz source
  • Can be connected to a computer system in order to measure the real time displacement with the Cadex software

*Headform not included and sold separately

Dimensions (Approx.):

  • Length: 60.66 cm / 23.88 in
  • Width: 67.31 cm / 26.5 in
  • Height: 167.64 cm / 66 in
    (minimum height – without headform)

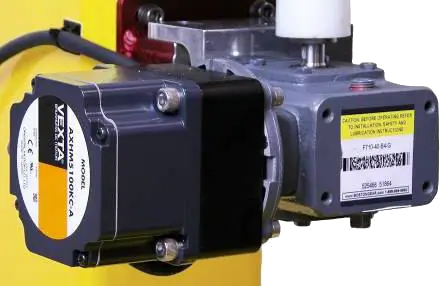

Motorized system
Motorized system
Top transducer
Top transducer
