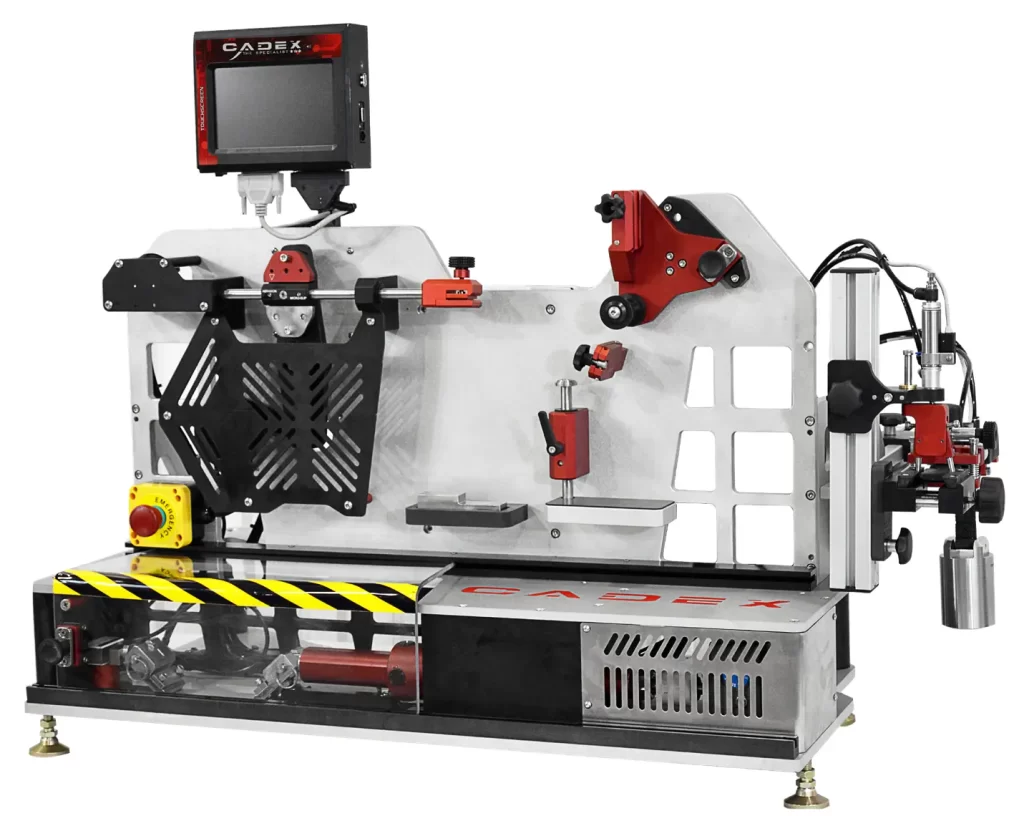

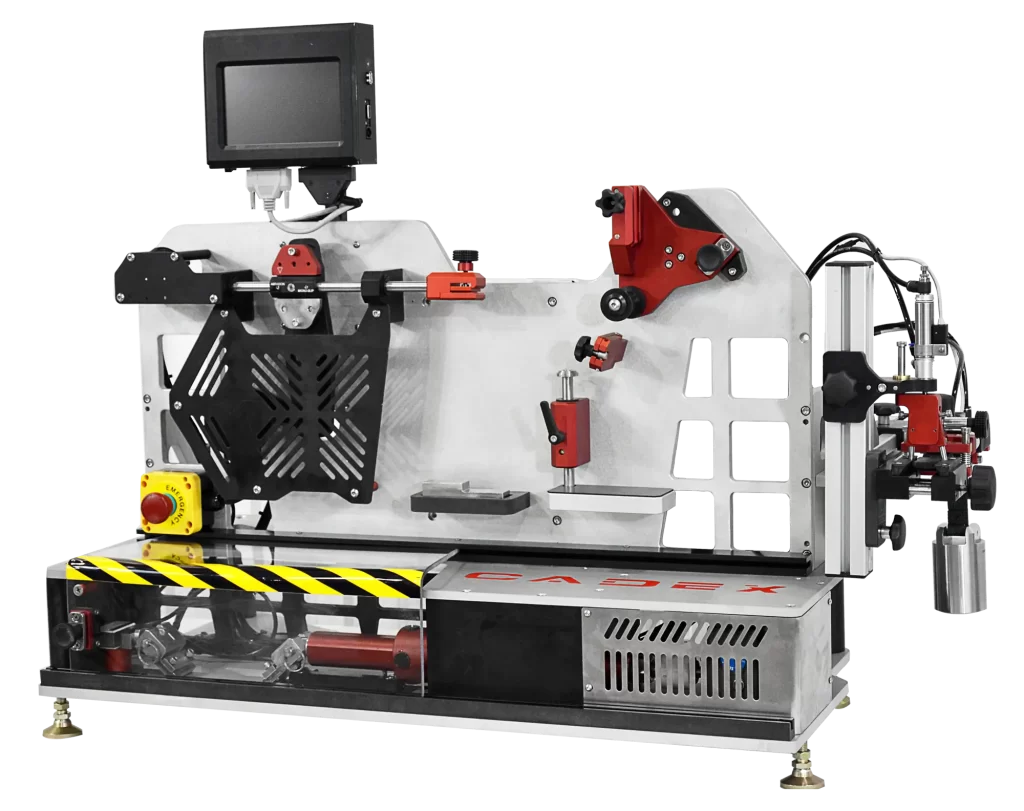

The Cadex chinstrap multipurpose machine is designed and manufactured to test microslippage, resistance to abrasion of the chinstrap and durability of quick release system. According to BSI and ECE 22 regulation.
Dimensions (Approx.):
- Length: 111.12 cm / 43.75 in
- Width: 54.61 cm / 21.5 in
- Height: 84.79 cm / 33.38 in
REQUIREMENTS:
- Power: 110v/220v – 50/60 Hz
- Constant air supply: 80 psi at 1 cfm
Features:
- Touchscreen controller
- Adjustable speed and cycle frequency
- Load cell 750 lbf (3.3 kN)
- Durability of quick release system on the side
- Interchangeable configuration for micro-slip and abrasion of the chinstrap
*Requires a custom quick release buckle holder*

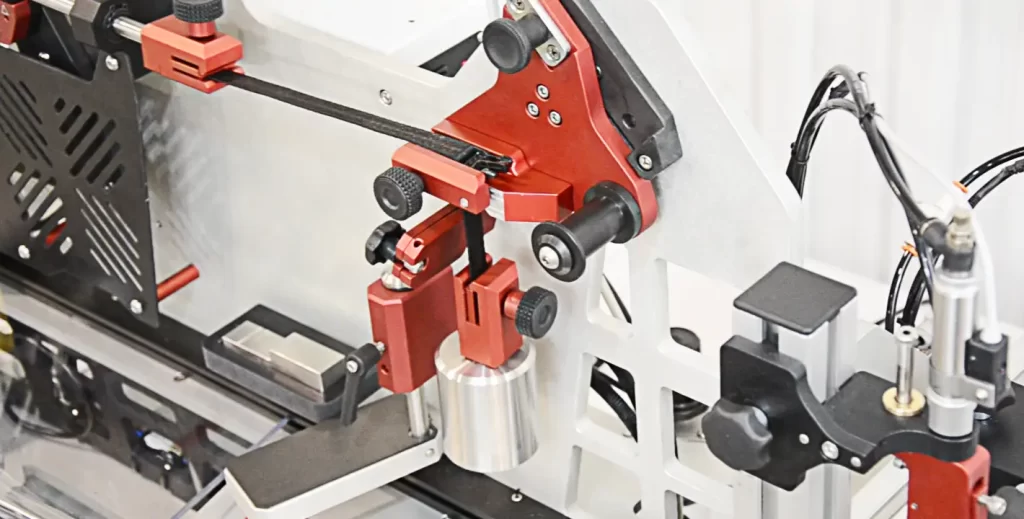

Resistance to abrasion test

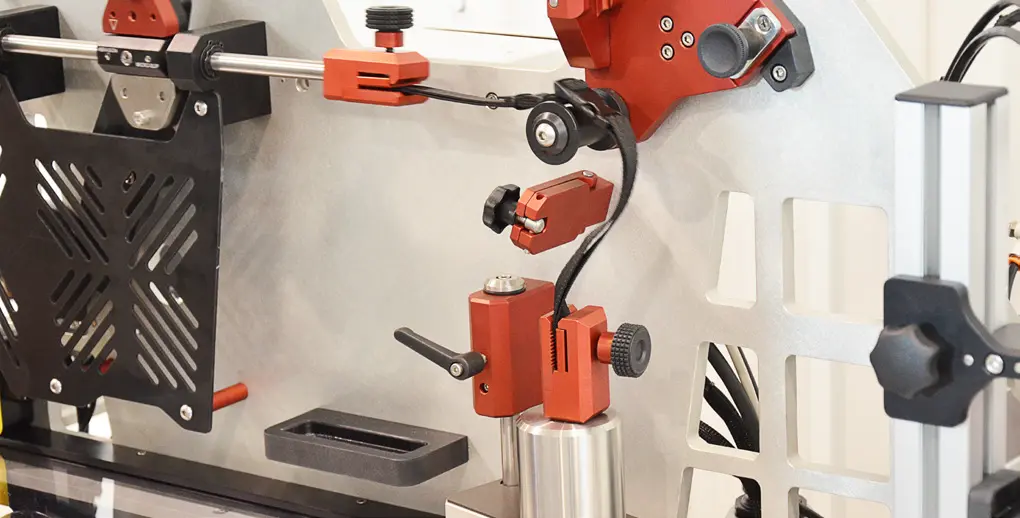

Micro-slip test

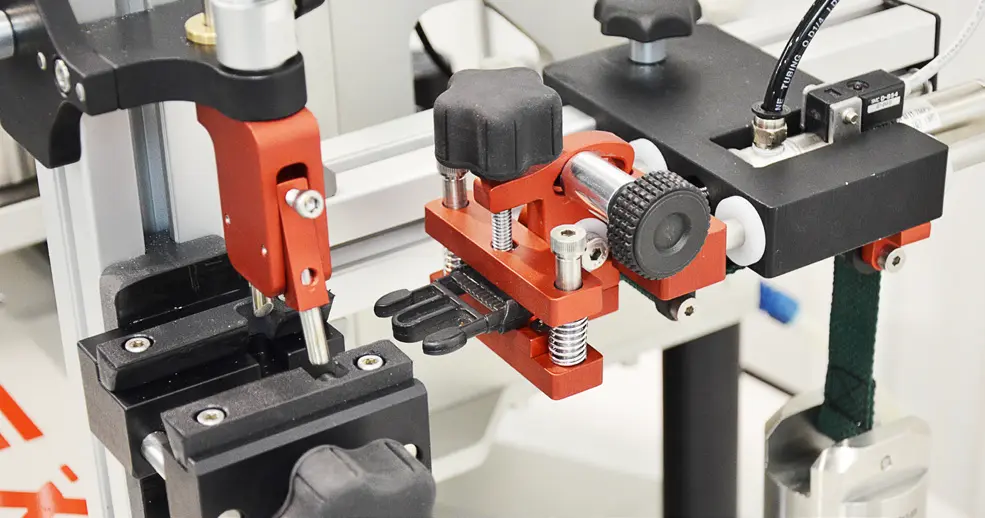

Durability of quick release system
