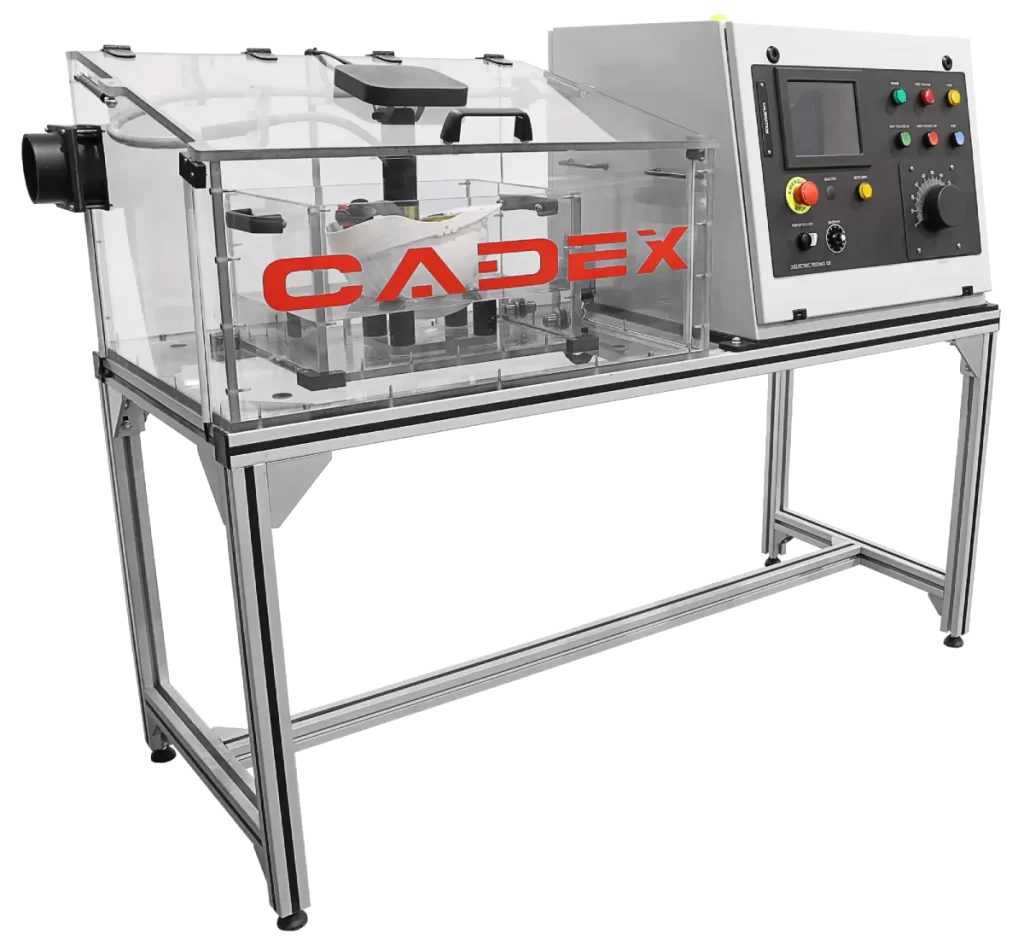

Dielectric Testing Equipment (ANSI)

P/N: 1000_08_DTM02

Download PDF

Request a Quote

This system is used to measure the dielectric properties of a hard hat shell. The leaking electric current is measured when a high-voltage tension is applied on both sides of the helmet’s shell, under wet conditions. Designed according to the ANSI/ISEA Z89.1 standards, electrical insulation testing procedure.


  • System generating up to 35,000 VAC /60Hz
  • Analog voltmeter and ampere meter display
  • Manual VAC adjustment
  • High gage electric wiring
  • Polycarbonate cage for better view
  • Polycarbonate vessel to contain fresh tap water
  • Located on top panel integrated safety switches
  • Side fan for extraction of the ozone gases generated during the test
    (this gas should be vented outside of the testing room and building)

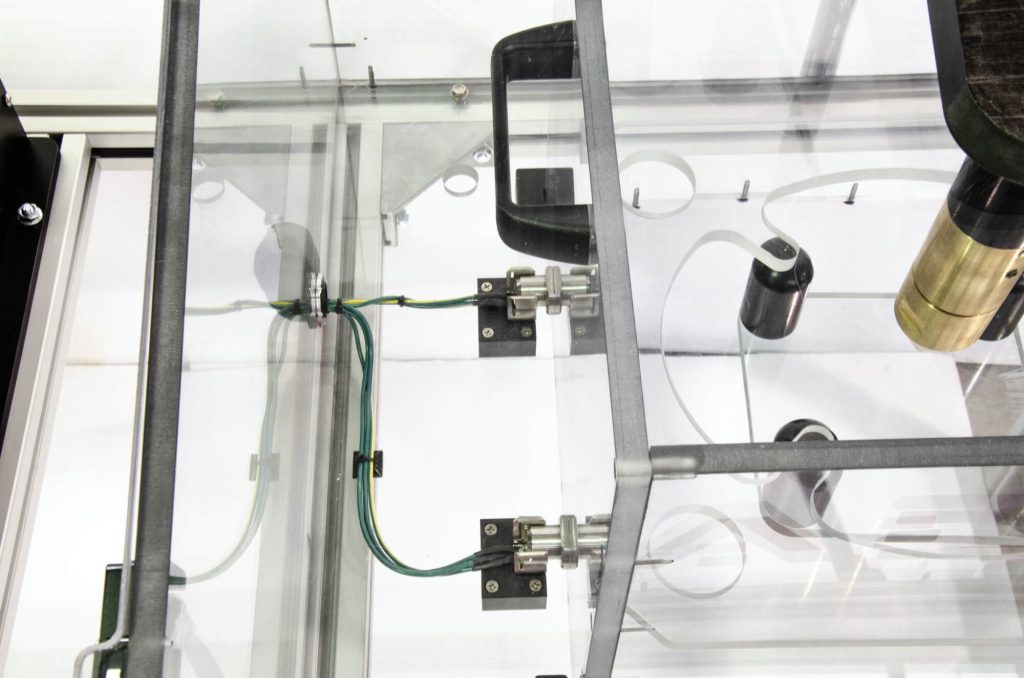

High gauge electric wiring
High gauge electric wiring
Control pannel with emergency stop
Control pannel with emergency stop

Dimensions (Approx.):

  • Length: 152.4 cm / 60 in
  • Width: 60.96 cm / 24 in
  • Height: 127 cm / 50 in
