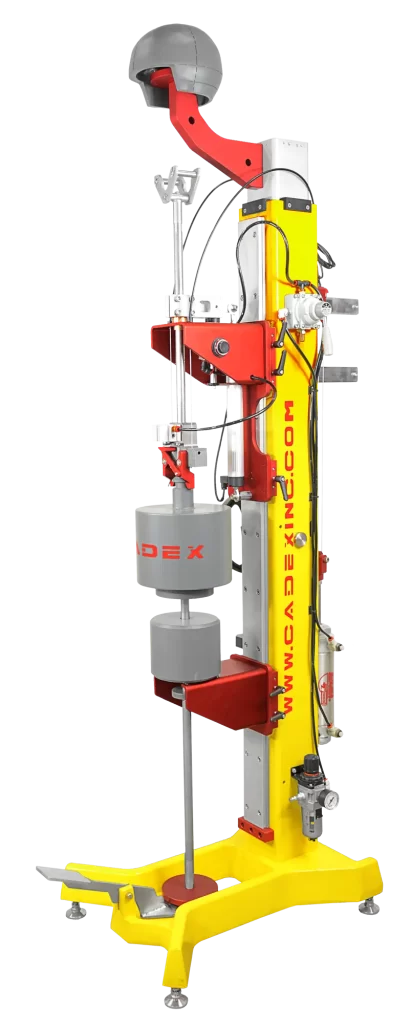

Dynamic Retention System (SNELL)

P/N: 1000_03_RSMS

Download PDF

Request a Quote

Designed and manufactured to test the efficiency of the helmets retention system. compliance with Snell motorcycle and car racing requirements (SNELL M2010 and SA-K2005). Can be adapted to other standards. Operated by either Cadex software or touchscreen controller.

Features:

  • Manual system
  • Pneumatic drop mass lifting system
  • Electronic conditioner box reads displacement over time during the test
  • Adjustable headform support can be raised or lowered up to 10 inches (25.4 cm)
  • Powered by 115VAC/60Hz or 220VAC/50Hz source
  • Can be connected to a computer system in order to measure the real time displacement with the Cadex software

*Headform not included and sold separately

Dimensions (Approx.):

  • Length: 48.26 cm / 19 in
  • Width: 81.28 cm / 32 in
  • Height: 176.53 cm / 69.5 in
    (minimum height – without headform)
Electronic conditioner box
Electronic conditioner box
Pneumatic lifting system
Pneumatic lifting system
Rear view
Rear view
