Monorail impact machine (triaxial)

P/N: 1000_01_MRA01 (type: triaxial setup)

Download PDF

Request a Quote

Free fall guided impact machine for impact attenuation evaluation which complies with ECE 22.06, EN 1077, EN 1078 and other standards. The Cadex monorail can be adapted for uniaxial, triaxial and/or rotational type of testing.


Full motorized system

  1. Remote control: sets the height and speed, initiates the test, activates
    pre-programmed settings and includes the emergency stop
  2. Soft release system / Drop carriage
  3. Velocimeter (timegate) for speed reading
  4. Protective cage: prevent damage to the machine after the impact
  5. Basket: used to support helmets during the free fall impact

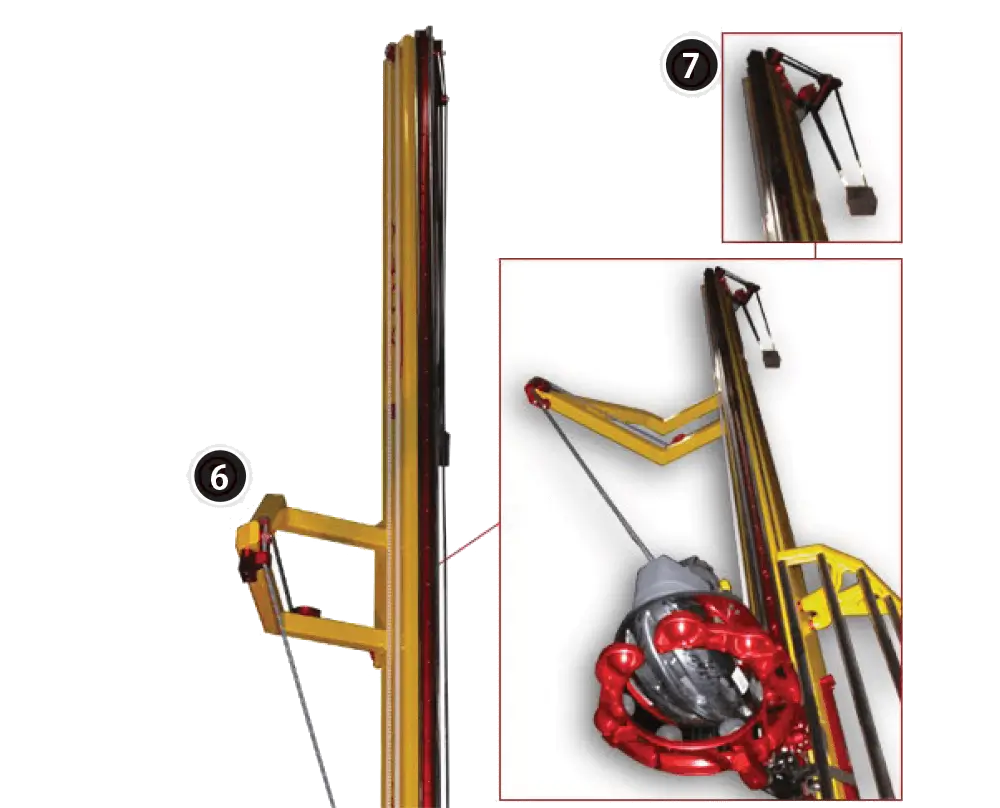

  6. Auto-retractable system to prevent a second impact
  7. Height safety switch

Hover over the numbers in the picture and have a tooltip with a description.

Dimensions (Approx.):

  • Length of the base: 34.29 cm / 13.5 in
  • Width of the base: 69.85 cm / 27.5 in
  • Height: 599.44 cm / 236 in


  • Triaxial impact attenuation testing
