Dynamic strap machine 2 in 1

P/N: 1000_03_RSM22

Request a Quote Download PDF

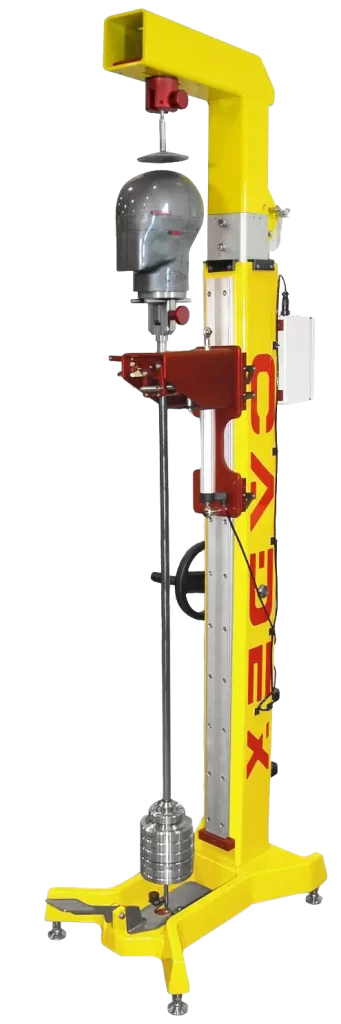

The dynamic strap machine (2 in 1) is designed and manufactured to test the efficiency of the helmets retention system compliance with ECE 22, EN 1078, ASTM, CPSC, AS/NZS, SNELL and other regulations and standards (depending on the accessories and weights selected).

DIMENSIONS (APPROX.):

•    Length: 48.26 cm / 19 in
•    Width:   81.28 cm / 32 in
•    Height:  203.2 cm / 80 in (minimum height – without headform)

FEATURES:

•    Manual system
•    Electronic conditioner box reads displacement over time during the test
•    Adjustable headform support can be raised or lowered up to 10 in (25.4 cm)
•    Need to be connected to a computer in order to measure the real time displacement with the Cadex software
•    Weight associated to the specific standard included

*Headform not included and sold separately

*Weights and accessories may differ according to the standard selected

REQUIREMENTS:

•    Power: 110v/220v – 50/60 Hz

Electronic control box
Additional weights and accessories to perform more standards
Full urethane headform holder
Drop platform
Half headform holder
