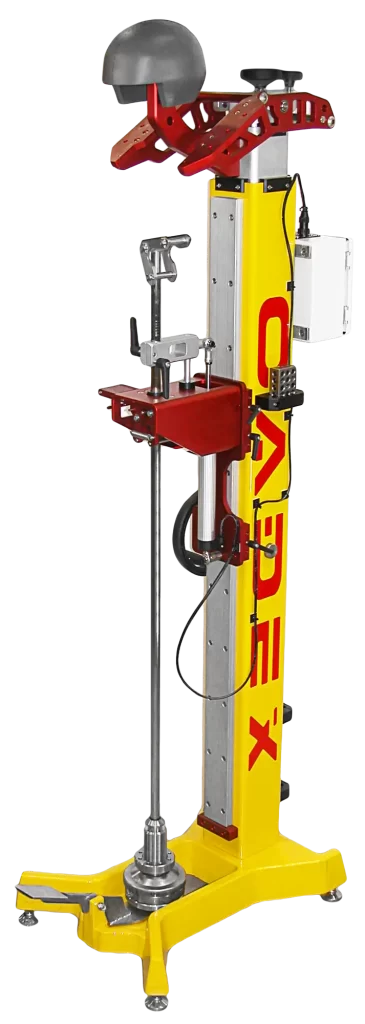

Dynamic retention system BSI

P/N: 1000_03_RSMBS

Download PDF

Designed and manufactured to test the efficiency of the helmet retention systems in compliance with BSI regulations and other standards. Operated by either Cadex software or touchscreen controller.

Features:

  • Manual system
  • Electronic conditioner box reads displacement over time during the test
  • Adjustable headform support can be raised or lowered up to 10 inches (25.4 cm)
  • Powered by 115VAC/60Hz or 220VAC/50Hz source
  • Can be connected to a computer system in order to measure the real time displacement with the Cadex software

*Headform not included and sold separately

Dimensions (Approx.):

  • Length: 48.26 cm / 19 in
  • Width: 81.28 cm / 32 in
  • Height: 176.53 cm / 69.5 in
    (minimum height – without headform)
Adjustable headform support with helmet
Adjustable headform support with helmet
Adjustable headform support without helmet
Adjustable headform support without helmet

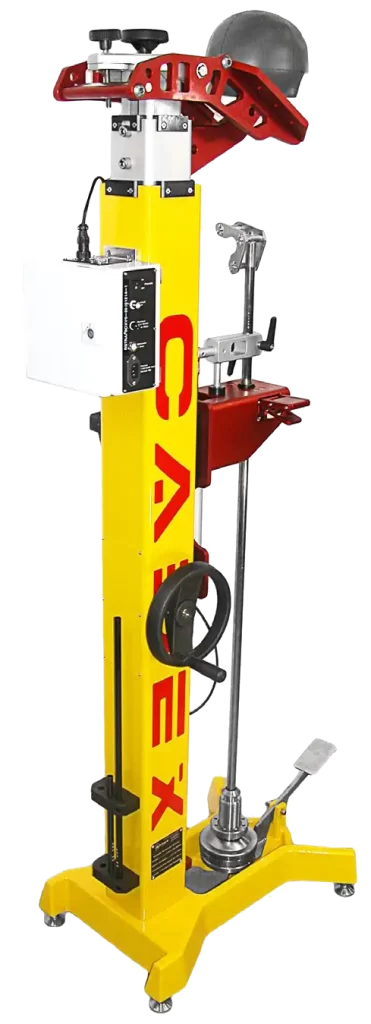

Rear view
Rear view
