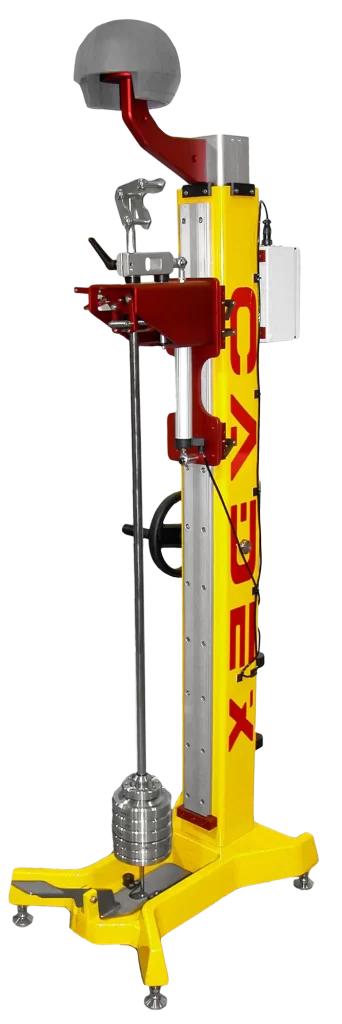

Dynamic Retention System ASTM

P/N: 1000_03_RSMA

Download PDF

Designed and manufactured to test the efficiency of the helmet retention systems in compliance with EN 1078, ASTM, CPSC, AS/NZS, BSI regulations and other standards. Operated by either Cadex software or touchscreen controller.


  • Manual system
  • Electronic conditioner box reads displacement over time during the test
  • Adjustable headform support can be raised or lowered up to 10 inches (25.4 cm)
  • Powered by 115VAC/60Hz or 220VAC/50Hz source
  • Can be connected to a computer system in order to measure the real time displacement with the Cadex software

*Headform not included and sold separately

Dimensions (Approx.):

  • Length: 48.26 cm / 19 in
  • Width: 81.28 cm / 32 in
  • Height: 176.53 cm / 69.5 in(without headform)
Electronic conditioner box
Electronic conditioner box
Additional weight to perform more standard
Additional weight to perform more standard

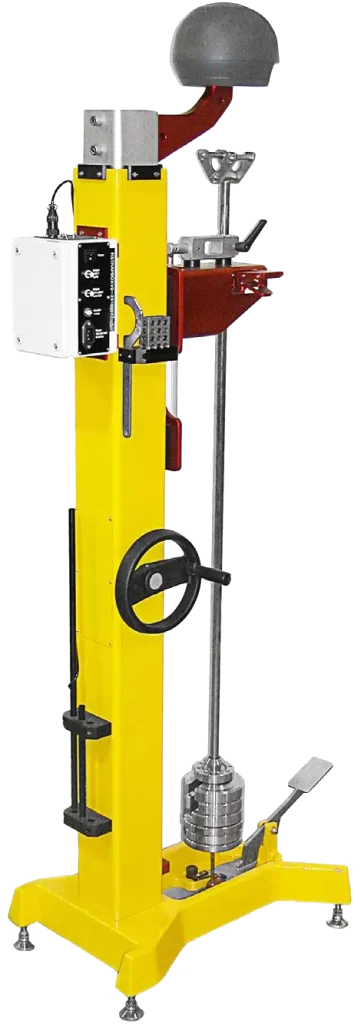

Rear view
Rear view
