P/N: 1000_06_FOV02

Download PDF

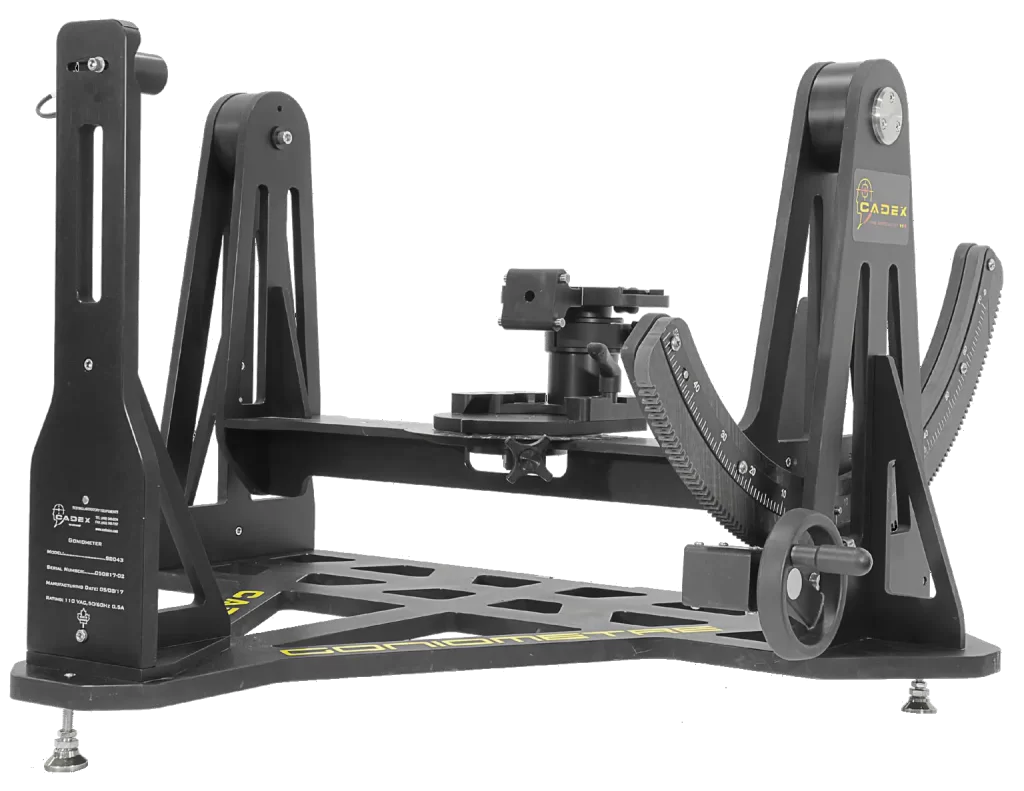

The Cadex goniometer is used to determine the area of coverage of face shield and field of vision according to EN 168, EN 174 and other standards.


  • Horizontal axe rotation at eyes level
  • Vertical axe rotation at eyes level
  • Laser included

*Headform EN 168 and Ellipse JIG shape EN 168 – EN 174 are not included with the equipment

Dimensions (Approx.):

  • Length: 107.01 cm / 42.13 in
  • Width: 98.43 cm / 38.75 in
  • Height: 60.33 cm / 23.75 in

Ellipse and bracket are sold separately

Ellipse and bracket (P/N: 300_07_TE168)
Ellipse and bracket (P/N: 300_07_TE168)
Angle graduation
Angle graduation
Laser included
Laser included
